The BEST 48V Lithium Golf Cart Battery from Bolt Energy USA. Just like us here at BEST Battery, Bolt is a Florida-Owned company with ties in our local communities. These 48V Lithium Golf Cart Batteries are the perfect upgrade or replacement for your golf cart and comes in a variety of different configurations designed to fit a variety of different carts.
Bolt Energy lithium batteries are high quality and maintenance free, giving our customers a powerful option to upgrade or replace their existing golf cart battery.
What’s Included:
Fitment: Universal Fit (Options for EVERY make/model)
Dimensions (L x W x H):
12.8″ x 12.01″ x 10.42″
Weight:
100.8 lbs (45.7kg)
Terminal Type:
M8*1.5*25mm
Cell Configuration:
1P16S
Case Material:
Powder Coated Steel
Enclosure Protection:
Designed with IP66 Standard
Cell Type – Chemistry:
Prismatic – LiFePO4
The BEST 48V Lithium Golf Cart Battery from Bolt
Download the full spec-sheet here
Nominal Voltage:
51.2V
Working Voltage:
43.2 – 58.4V
Recommended Voltage:
48.0V – 57.0V
Nominal Capacity:
105 Ah
Energy:
5,376Wh
Capacity @ 25A:
252 Min.
Efficiency:
0.99
Self Discharge:
<3% per Month
The BEST 48V Lithium Golf Cart Battery from Bolt
Download the full spec-sheet here
Maximum Continuous Discharge Current:
250 A
Peak Discharge Current:
520A ± 15.6A (30S)
BMS Discharge Current Cut-Off:
260 A ± A7.8A (50S)
520A ± 15.6A (30S)
BMS Voltage Current Cut-Off:
40.0V
Recommended Low Voltage Disconnect:
48.0V
BMS Reconnect Voltage:
41.6V
Discharge Temperature:
-4 to 149 °F (-20 to 65 °C)
The BEST 48V Lithium Golf Cart Battery from Bolt
Download the full spec-sheet here
Recommended Charge Current:
5 – 52A
Maximum Input Current:
350A
Charge Current Cut-Off:
375A
BMS Charge Voltage Cut-Off:
58.5V
Reconnect Voltage:
<58.5V
Charging Temperature Range:
34 to 140 °F (0 to 60 °C)
The BEST 48V Lithium Golf Cart Battery from Bolt
Download the full spec-sheet here
Dimensions (L x W x H):
12.8″ x 12.01″ x 10.42″
Weight:
100.8 lbs (45.7kg)
Terminal Type:
M8*1.5*25mm
Cell Configuration:
1P16S
Case Material:
Powder Coated Steel
Enclosure Protection:
Designed with IP66 Standard
Cell Type – Chemistry:
Prismatic – LiFePO4
The BEST 48V Lithium Golf Cart Battery “Mini” from Bolt
Download the full spec-sheet here
Nominal Voltage:
51.2V
Working Voltage:
43.2 – 58.4V
Recommended Voltage:
48.0V – 57.0V
Nominal Capacity:
105 Ah
Energy:
5,376Wh
Capacity @ 25A:
252 Min.
Efficiency:
0.99
Self Discharge:
<3% per Month
The BEST 48V Lithium Golf Cart Battery “Mini” from Bolt
Download the full spec-sheet here
Maximum Continuous Discharge Current:
250 A
Peak Discharge Current:
520A ± 15.6A (30S)
BMS Discharge Current Cut-Off:
260 A ± A7.8A (50S)
520A ± 15.6A (30S)
BMS Voltage Current Cut-Off:
40.0V
Recommended Low Voltage Disconnect:
48.0V
BMS Reconnect Voltage:
41.6V
Discharge Temperature:
-4 to 149 °F (-20 to 65 °C)
The BEST 48V Lithium Golf Cart Battery “Mini” from Bolt
Download the full spec-sheet here
Recommended Charge Current:
5 – 52A
Maximum Input Current:
350A
Charge Current Cut-Off:
375A
BMS Charge Voltage Cut-Off:
58.5V
Reconnect Voltage:
<58.5V
Charging Temperature Range:
34 to 140 °F (0 to 60 °C)
The BEST 48V Lithium Golf Cart Battery “Mini” from Bolt
Download the full spec-sheet here
Dimensions (L x W x H):
20″ x 8.43″ x 10.65″
Weight:
105 lbs (47.63kg)
Terminal Type:
M8*1.5*25mm
Cell Configuration:
1P16S
Case Material:
Powder Coated Steel
Enclosure Protection:
Designed with IP66 Standard
Cell Type – Chemistry:
Prismatic – LiFePO4
The BEST 48V Lithium Golf Cart Battery “Thin” from Bolt
Download the full spec-sheet here
Nominal Voltage:
51.2V
Working Voltage:
43.2 – 58.4V
Recommended Voltage:
48.0V – 57.0V
Nominal Capacity:
105 Ah
Energy:
5,376Wh
Capacity @ 25A:
252 Min.
Efficiency:
0.99
Self Discharge:
<3% per Month
The BEST 48V Lithium Golf Cart Battery “Thin” from Bolt
Download the full spec-sheet here
Maximum Continuous Discharge Current:
250 A
Peak Discharge Current:
520A ± 15.6A (30S)
BMS Discharge Current Cut-Off:
260 A ± A7.8A (50S)
520A ± 15.6A (30S)
BMS Voltage Current Cut-Off:
40.0V
Recommended Low Voltage Disconnect:
48.0V
BMS Reconnect Voltage:
41.6V
Discharge Temperature:
-4 to 149 °F (-20 to 65 °C)
The BEST 48V Lithium Golf Cart Battery “Thin” from Bolt
Download the full spec-sheet here
Recommended Charge Current:
5 – 52A
Maximum Input Current:
350A
Charge Current Cut-Off:
375A
BMS Charge Voltage Cut-Off:
58.5V
Reconnect Voltage:
<58.5V
Charging Temperature Range:
34 to 140 °F (0 to 60 °C)
The BEST 48V Lithium Golf Cart Battery “Thin” from Bolt
Download the full spec-sheet here
Dimensions (L x W x H):
29.57″ x 10.17″ x 9.13″
Weight:
153 lbs (69.4kg)
Terminal Type:
M8*1.5*25mm
Cell Configuration:
1P16S
Case Material:
Powder Coated Steel
Enclosure Protection:
Designed with IP66 Standard
Cell Type – Chemistry:
Prismatic – LiFePO4

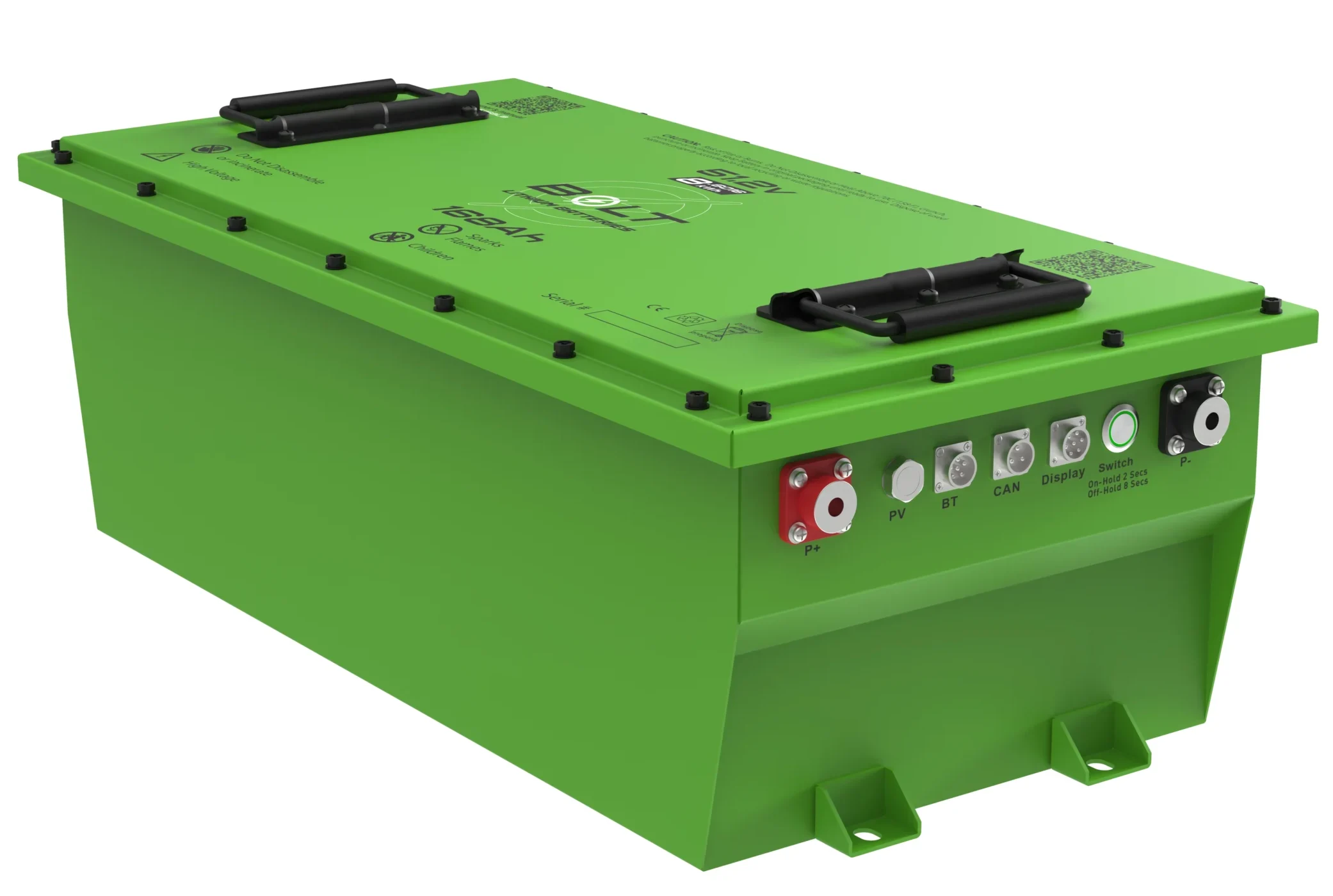

The BEST 48V Lithium Golf Cart Battery “Big” from Bolt
Download the full spec-sheet here
Nominal Voltage:
51.2V
Working Voltage:
43.2 – 58.4V
Recommended Voltage:
48.0V – 57.0V
Nominal Capacity:
160 Ah
Energy:
8,192 Wh
Capacity @ 25A:
384 Min.
Efficiency:
0.99
Self Discharge:
<3% per Month
The BEST 48V Lithium Golf Cart Battery “Big” from Bolt
Download the full spec-sheet here
Maximum Continuous Discharge Current:
250 A
Peak Discharge Current:
520A ± 15.6A (30S)
BMS Discharge Current Cut-Off:
260 A ± A7.8A (50S)
520A ± 15.6A (30S)
BMS Voltage Current Cut-Off:
40.0V
Recommended Low Voltage Disconnect:
48.0V
BMS Reconnect Voltage:
41.6V
Discharge Temperature:
-4 to 149 °F (-20 to 65 °C)
The BEST 48V Lithium Golf Cart Battery “Big” from Bolt
Download the full spec-sheet here
Recommended Charge Current:
5 – 52A
Maximum Input Current:
350A
Charge Current Cut-Off:
375A
BMS Charge Voltage Cut-Off:
58.5V
Reconnect Voltage:
<58.5V
Charging Temperature Range:
34 to 140 °F (0 to 60 °C)
The BEST 48V Lithium Golf Cart Battery “Big” from Bolt
Download the full spec-sheet here
Eco Battery are industry leaders in the golf cart battery space, offering The BEST 48V Lithium Golf Cart Battery with uncompromising quality and performance for electric golf carts.
Eco Batteries come factory installed on some carts, but they also offer upgrade kits for big names like Club Car, Yamaha and EZGO.
What’s Included:
Fitment: The BEST 48V Lithium Golf Cart Battery fits various models including Club Car, Yamaha Par Car, EZGO and more.
Nominal Voltage:
51.2V
Working Voltage:
43.2V – 58.4V
Recommended Voltage:
48.0V – 57.0V
Cell Count:
16
Nominal Capacity:
60Ah
Energy:
3,072Wh
Reserve @25A:
144 Minutes
Self Discharge:
1% Per Month
IP Rating:
IP65
The BEST 48V Lithium Golf Cart Battery from Eco Battery
Download the full spec-sheet here
Recommended Charging Current:
<30A
Max Charging Current:
60A
Bulk/Absorb Voltage:
57.0V
Float Voltage:
54.0V or Off
BMS High Voltage Cutoff:
59.2V
Charging Temperature Range:
32F to 130F
The BEST 48V Lithium Golf Cart Battery from Eco Battery
Download the full spec-sheet here
Max Continuous Discharge:
180A
Max Discharge 3 Sec:
360A
Max Discharge 30 Sec:
240A
Recommended Voltage Cutoff:
48.0V
BMS High Voltage Cutoff:
43.2V
BMS Voltage Recovery:
46.4V
Discharge Temp Range:
-10F to 140F
The BEST 48V Lithium Golf Cart Battery from Eco Battery
Download the full spec-sheet here
Cell Chemistry:
Lithium Iron Phosphate
Cell Type:
Prismatic
Cell Configuration:
1P16S
Series Connectable:
No
Parallel Connectable:
Yes, up to 2
Weight:
70 lbs (42.6Kg)
Dimension L x W x H:
13.37” x 10.18” x 11”
Terminal Type:
M8 Female
Shell Type:
Powder Coated Steel
UN Shipping Class:
UN 3480
The BEST 48V Lithium Golf Cart Battery from Eco Battery
Download the full spec-sheet here
Charging Freeze Protection:
Yes, Under 32F
Pack Over-Voltage:
Yes
Cell Balancing:
Yes
Pack Under-Voltage:
Yes
Cell Under-Voltage:
Yes
Cell Over-Temp:
Yes
BMS Over-Temp:
Yes
Short Circut/Over Current:
Yes
Certications:
UN38.3, UL1642 Cell
The BEST 48V Lithium Golf Cart Battery from Eco Battery
Download the full spec-sheet here
Nominal Voltage:
51.2V
Working Voltage:
43.2V – 58.4V
Recommended Voltage:
48.0V – 57.0V
Cell Count:
16
Nominal Capacity:
105Ah
Energy:
5,376Wh
Reserve @25A:
252 Minutes
Self Discharge:
1% Per Month
IP Rating:
IP65
The BEST 48V Lithium Golf Cart Battery from Eco “Thru Hole” Battery
Download the full spec-sheet here
Recommended Charging Current:
<52A
Max Charging Current:
105A
Bulk/Absorb Voltage:
57.0V
Float Voltage:
54.0V or Off
BMS High Voltage Cutoff:
59.2V
Charging Temperature Range:
32F to 130F
The BEST 48V Lithium Golf Cart Battery from Eco “Thru Hole” Battery
Download the full spec-sheet here
Max Continuous Discharge:
175A
Max Discharge 3 Sec:
500A
Max Discharge 30 Sec:
300A
Recommended Voltage Cutoff:
48.0V
BMS High Voltage Cutoff:
43.2V
BMS Voltage Recovery:
46.4V
Discharge Temp Range:
-10F to 140F
The BEST 48V Lithium Golf Cart Battery from Eco “Thru Hole” Battery
Download the full spec-sheet here
Cell Chemistry:
Lithium Iron Phosphate
Cell Type:
Prismatic
Cell Configuration:
1P16S
Series Connectable:
No
Parallel Connectable:
Yes, up to 2
Weight:
94 lbs (42.6Kg)
Dimension L x W x H:
13.14” x 12.24” x 10.15”
Terminal Type:
M8 Female
Shell Type:
Powder Coated Steel
UN Shipping Class:
UN 3480
The BEST 48V Lithium Golf Cart Battery from Eco “Thru Hole” Battery
Download the full spec-sheet here
Charging Freeze Protection:
Yes, Under 32F
Pack Over-Voltage:
Yes
Cell Balancing:
Yes
Pack Under-Voltage:
Yes
Cell Under-Voltage:
Yes
Cell Over-Temp:
Yes
BMS Over-Temp:
Yes
Short Circut/Over Current:
Yes
Certications:
UN38.3, UL1642 Cell
The BEST 48V Lithium Golf Cart Battery from Eco “Thru Hole” Battery
Download the full spec-sheet here
Nominal Voltage:
51.2V
Working Voltage:
43.2V – 58.4V
Recommended Voltage:
48.0V – 57.0V
Cell Count:
16
Nominal Capacity:
105Ah
Energy:
5,376Wh
Reserve @25A:
252 Minutes
Self Discharge:
1% Per Month
IP Rating:
IP65
The BEST 48V Lithium Golf Cart Battery from Eco “Slim” Battery
Download the full spec-sheet here
Recommended Charging Current:
<52A
Max Charging Current:
105A
Bulk/Absorb Voltage:
57.0V
Float Voltage:
54.0V or Off
BMS High Voltage Cutoff:
59.2V
Charging Temperature Range:
32F to 130F
The BEST 48V Lithium Golf Cart Battery from Eco “Slim” Battery
Download the full spec-sheet here
Max Continuous Discharge:
175A
Max Discharge 3 Sec:
500A
Max Discharge 30 Sec:
300A
Recommended Voltage Cutoff:
48.0V
BMS High Voltage Cutoff:
43.2V
BMS Voltage Recovery:
46.4V
Discharge Temp Range:
-10F to 140F
The BEST 48V Lithium Golf Cart Battery from Eco “Slim” Battery
Download the full spec-sheet here
Cell Chemistry:
Lithium Iron Phosphate
Cell Type:
Prismatic
Cell Configuration:
1P16S
Series Connectable:
No
Parallel Connectable:
Yes, up to 2
Weight:
102.2 lbs (46.3Kg)
Dimension L x W x H:
22” x 9.75” x 10.43”
Terminal Type:
M8 Female
Shell Type:
Powder Coated Steel
UN Shipping Class:
UN 3480
The BEST 48V Lithium Golf Cart Battery from Eco “Slim” Battery
Download the full spec-sheet here
Charging Freeze Protection:
Yes, Under 32F
Pack Over-Voltage:
Yes
Cell Balancing:
Yes
Pack Under-Voltage:
Yes
Cell Under-Voltage:
Yes
Cell Over-Temp:
Yes
BMS Over-Temp:
Yes
Short Circut/Over Current:
Yes
Certications:
UN38.3, UL1642 Cell
The BEST 48V Lithium Golf Cart Battery from Eco “Slim” Battery
Download the full spec-sheet here
Nominal Voltage:
51.2V
Working Voltage:
43.2V – 58.4V
Recommended Voltage:
48.0V – 57.0V
Cell Count:
16
Nominal Capacity:
160Ah
Energy:
8,192Wh
Reserve @25A:
384 Minutes
Self Discharge:
1% Per Month
IP Rating:
IP67
The BEST 48V Lithium Golf Cart Battery from Eco “Big” Battery
Download the full spec-sheet here
Recommended Charging Current:
<80A
Max Charging Current:
160A
Bulk/Absorb Voltage:
57.0V
Float Voltage:
54.0V or Off
BMS High Voltage Cutoff:
59.2V
Charging Temperature Range:
32F to 130F
The BEST 48V Lithium Golf Cart Battery from Eco “Big” Battery
Download the full spec-sheet here
Max Continuous Discharge:
175A
Max Discharge 3 Sec:
500A
Max Discharge 30 Sec:
300A
Recommended Voltage Cutoff:
48.0V
BMS High Voltage Cutoff:
43.2V
BMS Voltage Recovery:
46.4V
Discharge Temp Range:
-10F to 140F
The BEST 48V Lithium Golf Cart Battery from Eco “Big” Battery
Download the full spec-sheet here
Cell Chemistry:
Lithium Iron Phosphate
Cell Type:
Prismatic
Cell Configuration:
2P16S
Series Connectable:
No
Parallel Connectable:
Yes, up to 2
Weight:
146 lbs (66.22Kg)
Dimension L x W x H:
22” x 12.125” x 10.625”
Terminal Type:
M8 Female
Shell Type:
Powder Coated Steel
UN Shipping Class:
UN 3480
The BEST 48V Lithium Golf Cart Battery from Eco “Big” Battery
Download the full spec-sheet here
Charging Freeze Protection:
Yes, Under 32F
Pack Over-Voltage:
Yes
Cell Balancing:
Yes
Pack Under-Voltage:
Yes
Cell Under-Voltage:
Yes
Cell Over-Temp:
Yes
BMS Over-Temp:
Yes
Short Circut/Over Current:
Yes
Certications:
UN38.3, UL1642 Cell
The BEST 48V Lithium Golf Cart Battery from Eco “Big” Battery
Download the full spec-sheet here
The perfect 1:1 drop-in LiFePO4 battery to replace your GC2 style lead acid batteries. Solid ABS case construction, high tech BMS safety and convenience features, and the ability to scale these setups up all the way to 300Ah (space-permitting). These batteries communicate with each other via a CanBus connection, to ensure equal discharge and charging.
These batteries can fit in every golf cart on the market, and are recommended to be fastened down with fabricated or factory lead-acid brackets.
What’s Included:
Fitment: Universal fit, models including Club Car, Yamaha Par Car, EZGO and more.
$1,799 – 2 Batteries (60Ah)
$2,499 – 3 Batteries (90Ah)
$3,199 – 4 Batteries (120Ah)
$3,899 – 5 Batteries (150Ah)
$4,399 – 6 Batteries (180Ah)
We are available by phone during normal business hours M-F. Any questions or inquiries, feel free to email us!
© 2023 Power Quality Partners Inc. All rights reserved.
Best Battery is a Division of Power Quality Partners Inc.
Certified woman-owned business
5626 C. Thomas Road, Unit 800
Wildwood, FL 34785
LOCAL DELIVERY AVAILABLE IN CENTRAL FLORIDA
